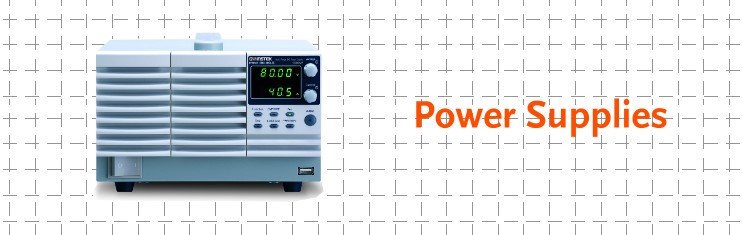

AC/DC power supplies, Electronic Load

Stemming from the design and manufacture demands of electronic industries, GW Instek offers diverse power supply product lines to meet user’s demand for a variety of applications. Based on different needs, the product lines can be divided into several categories including DC Power Supply, AC Power Source and DC Electronic Load. For DC Power Supply, the products can be briefly categorized by the following types, Linear, Switching, Programmable or Non-programmable, Single or Multiple Outputs, High Precision or Affordable Price, Dual Range and Wide Combinations of Voltage and Current, which can be selected to meet the application requirements.

The new APS-Series AC/DC Power Source is not only a precision AC/DC power source, but also as a powerful analyzer, containing abundant features for the testing and characteristic analysis of power supplies, electronic devices, components and modules. In addition to AC/ DC Power Source the APS-Series is fully programmable to simulate different power outputs. Sequence can be created by using arbitrary waveforms as well as voltage or frequency sweeps.

GW Instek offers more than 100 power supply products are suitable for the requirements of Electronic Assembly Testing, Education, Component Testing, Wireless Product Testing, Burn-in, Battery-Power Product Testing Automotive, Aerospace industries and so on.

  • Filter
Created on: 30 October 2014

Features - 6 1/2 Digit measurement resolution- Dual measurement for Voltage and Current- AC&DC Current measurement range:30mA/300mA/3A/30A/300A(Max)AC Voltage measurement range:200mV/2V/20V/200V/600V(Max)DC Voltage measurement range:200mV/2V/20V/200V/1000V(Max)- Auto zero circuit- Standard Interfaces: USB, GPIB

Created on: 30 October 2014

Features : - 5.7" Large LCD Display- Output Capacity: 1kVA(for AC 200V Input)- Output Modes: AC and AC+DC Combined with any of four signal sources- Signal Source: Internal(INT),External(EXT),Internal+Externl(ADD)and Sychronization(SYNC)- Arbitrary Waveform Power Output- Power Amplifier of External Signal- Measurement Functions: Voltage, Current, Power ,Frequency, PowerFactor,CF,and Harmonic Current- Capacitor Input Load Supported- Sequence Function Allows Programming of Output Patterns- Limiter Function ( Upper / Lower / Limit Function)- 30 sets of Save / Recall Memory- Output On / Off Switch- USB(USBTMC)and RS-232 Standard for Remote Control- PC Software (Including Data Logging)

Created on: 30 October 2014

Features : AC power supply(Power Supplies5.7”large LCD displayVarious output modes and measurement functionsAC-superimposed DC outputCapacitor input load supportedSequence functionLimiter function30 Sets of SAVE / RECALL memoriesUSB(USBTMC)standard for remote controlOutput On/Off FunctionAC power supply

Created on: 30 October 2014

Features : -Operating voltage (DC):1.5V~150V-Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV -Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)-Support of High Slew Rate:Max 16A/us-Run Program Function(GO/NO GO Test)-Sequence Function for High Efficient Load Simulations-Commands are compatible with Kikusui PLZ-4W model.-Dynamic(Switching) Function:0.0166Hz ~20kHz-Soft Start Function:Off / On(1~200ms, Res:1ms)-Adjustable OCP / OVP / OPP / UVP Setting -Short Circuit Function-Timer function : Elapsed Time of load on -Cut Off Time(Auto Load Off Timer ):1s to 999h 59min 59s or Off -External Channel Control / Monitoring via Analog Control Connector-Setup Memories:100 sets-3.5 Inch TFT LCD Display-Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB (Optional)

Created on: 30 October 2014

Features: -Sequence function to do high Efficient load simulations-Flexible configuration with mainframes and plug-in modules-Multiple independent load inputs up to 8 channels in a mainframe-Parallel connection of inputs for increased load capacity-Parallel connection of inputs for static and dynamic tests-Multiple channels run for dynamic tests under one clock control -Maximum rated power for low range high resolution CC tests-Von setting and Von on/off for start-up Von tests-Program mode to create work routines for repetitive tests-OPP/OCP/OVP/OTP protections-External channel control/monitoring via an analog control connector-Multi-Interface USB Device / Host, RS-232C, and GPIB (Optional) -Multi-mainframe link up to 5 mainframes in a system

Created on: 30 October 2014

Features: Easy Operation with UP/DOWN Key High Resolution: 10mV, 1mA Over Voltage Protection, Over Current Protection by Hardware 100 Sets of Memory Self Test and Software Calibration Meets UL CSA IEC Safety Regulation Auto Step Running With Time Setting FRONT/REAR Output and Sense Switch Selectable IEEE-488.2 and SCPI Compatible Command set Labview Driver Software High Stability, Low Drift 4 Digit Display

Created on: 30 October 2014

Features: Easy operation with UP/DOWN key High resolution: 10mV, 1mA Over voltage protection, over current protection by software 50 Sets memory Self test and software calibration Meets UL, CSA, IEC safety regulation Auto step running with timer setting Triple output Auto tracking RS-232 communication High stability,low drift 4 digit display

Created on: 30 October 2014

Features: -Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)-3.5 Inch TFT LCD Display-Constant Voltage and Constant Current Operation-Built-in DVM Measurement Function-High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for 5mA Range)-EXternal Relay Control Output On/Off-Sink Current Capability (Maximum:2A)-Digital Panel Control-Selectable Output and Input (DVM) Ports From Front or Rear Panel-Key Lock Function-5 Sets of Preset Memory Including Power Output ON/OFF States-High Speed Transient Recovery Time(<40us within 100mV ; <80us within 20mV)-OVP/OCP/OTP Protection to Prevent DUT Damage -Standard Multiple Interfaces: USB / LAN /GPIB-Labview Driver and PC Remote Control Software
