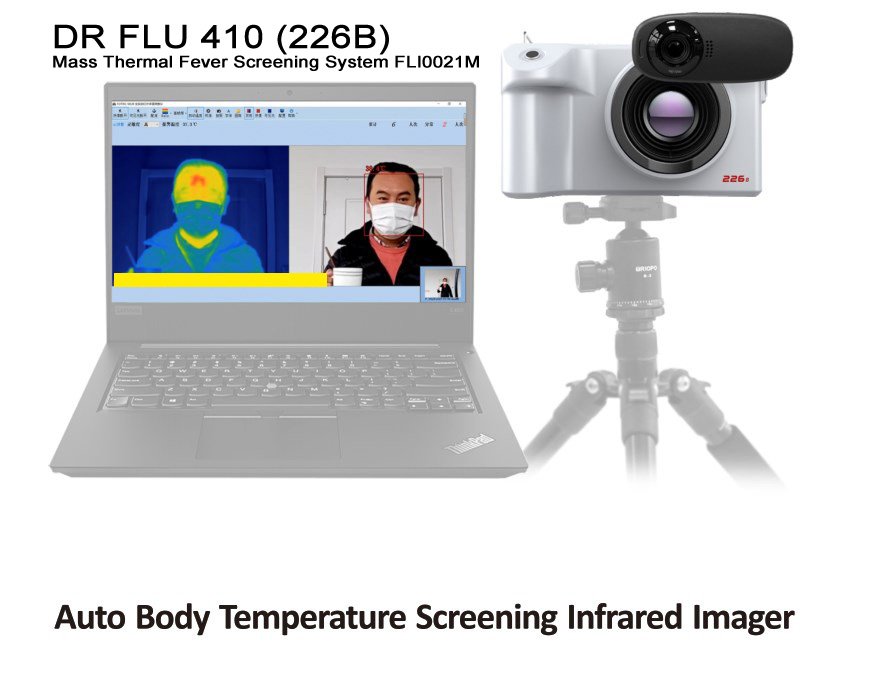

DR FLU 410 Mass Thermal Body Fever Monitoring and Detection System - English Interface (FLI0021M)



PDF Catalog:



FLI0021M - Main unit
FLI0021A02 - Tripod

FLI0021A03C: Compatible PC with advisable ~23 inch monitor
FLI0021T: Product training, Basic Calibration and Setup in your site office (cost depends on locations starting from RM1890)


Key Features

  • Efficient & rapid body scanner
  • Temperature range of 20˚C to 60 ˚C (68˚F - 140˚F)
  • Little impact on an area's population traffic efficiency
  • Audible voice alarm / visual red box indicator
  • Self compensates for changes to ambient temperatures and distances

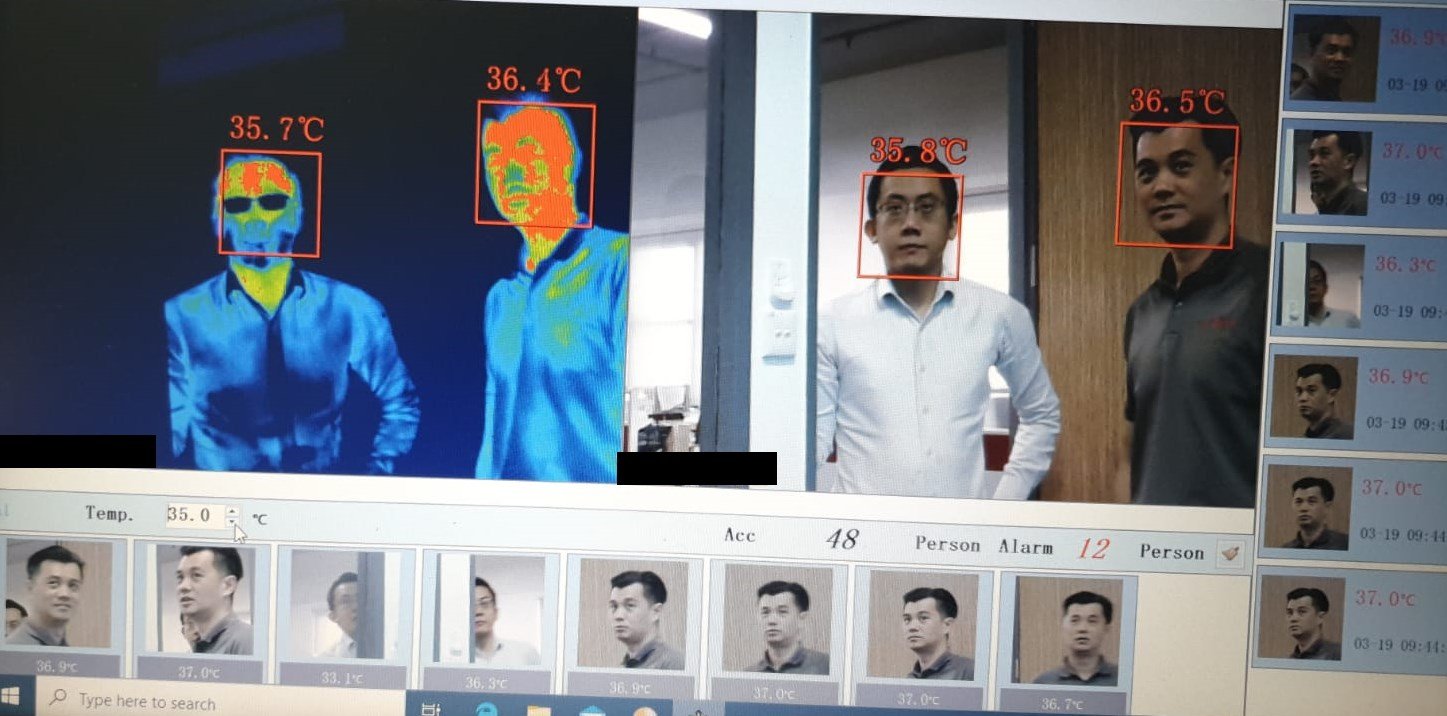

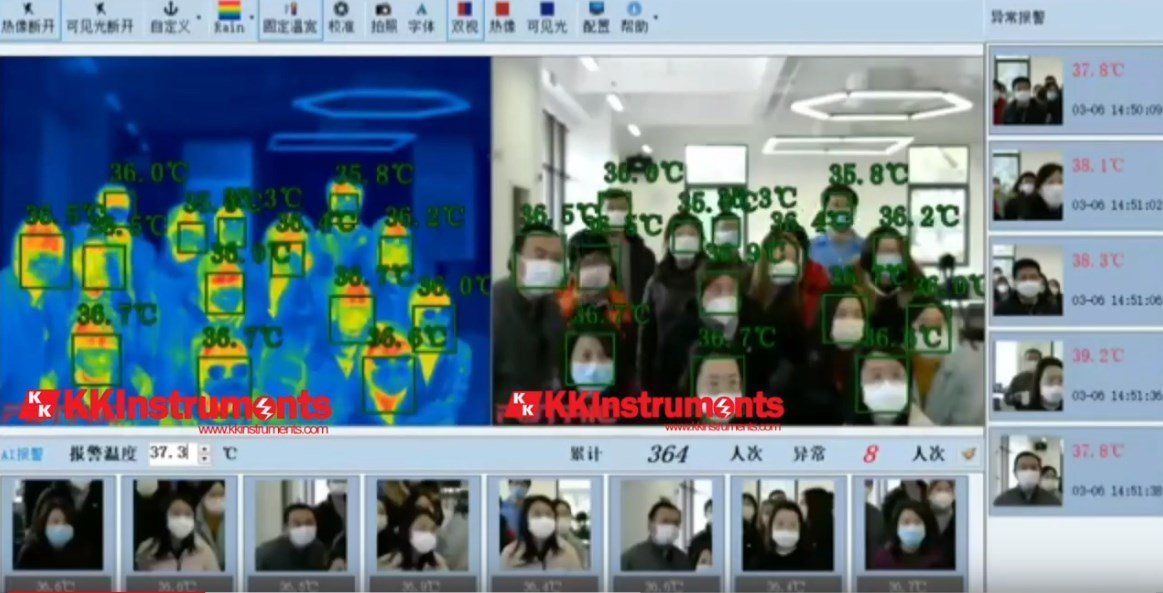

  • Scan two faces simultaneously
  • Non-contact measurement - ensuring safety of detection personnel
  • Precise due to increased pixel count of 384 x 288
  • Built-in AI intelligence
  • Polysilicon-FPA detector
  • A single photo produces up to 110k temperature measuring points, including in hair
  • Cost effective, safe and easy to maintain
  • Quick to deploy including installation, commissioning and powering up.
  • Supports continuous 24 hour monitoring with a temperature stability of ±0.5˚C

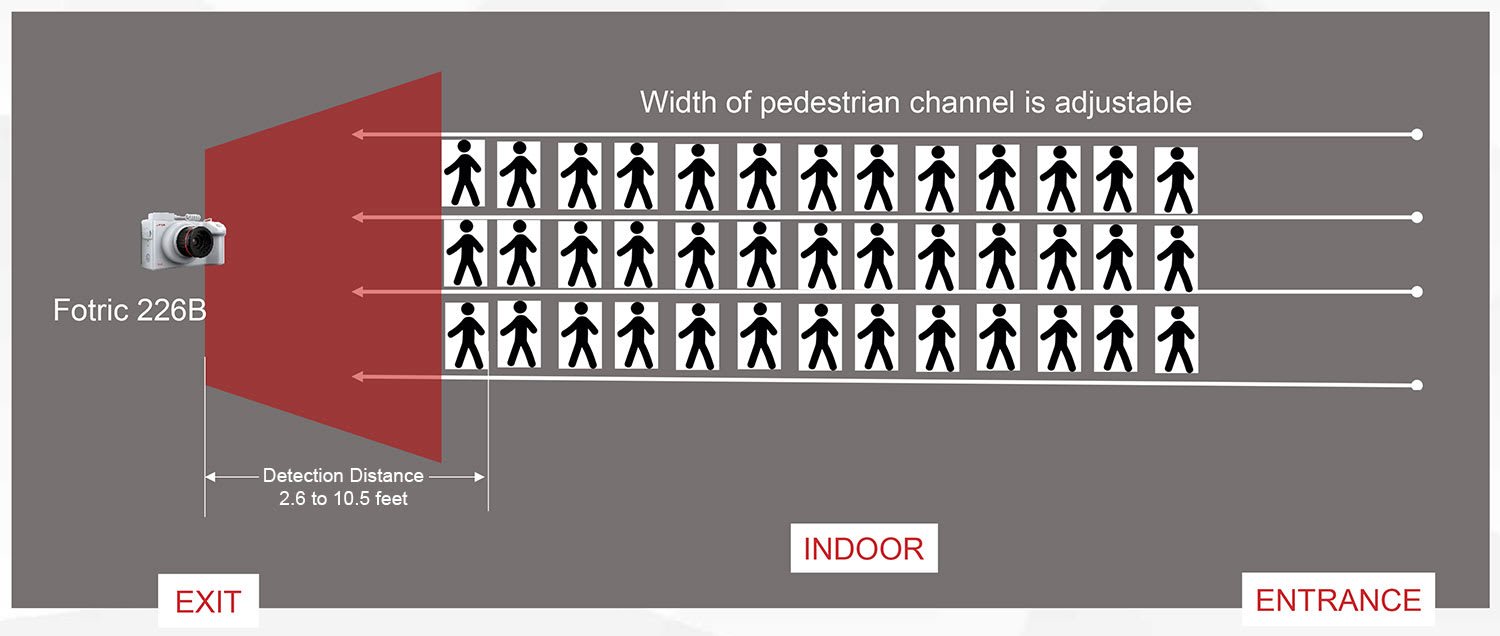

  • Indoor or outdoor - best performance indoor, detect distance 0.8m to 3.2m
  • WLIR software included with intelligent AI
  • Automatically locks face temperature, disregards miscellaneous external temps
  • Automatically count the number of screened personnel / abnormal cases recorded

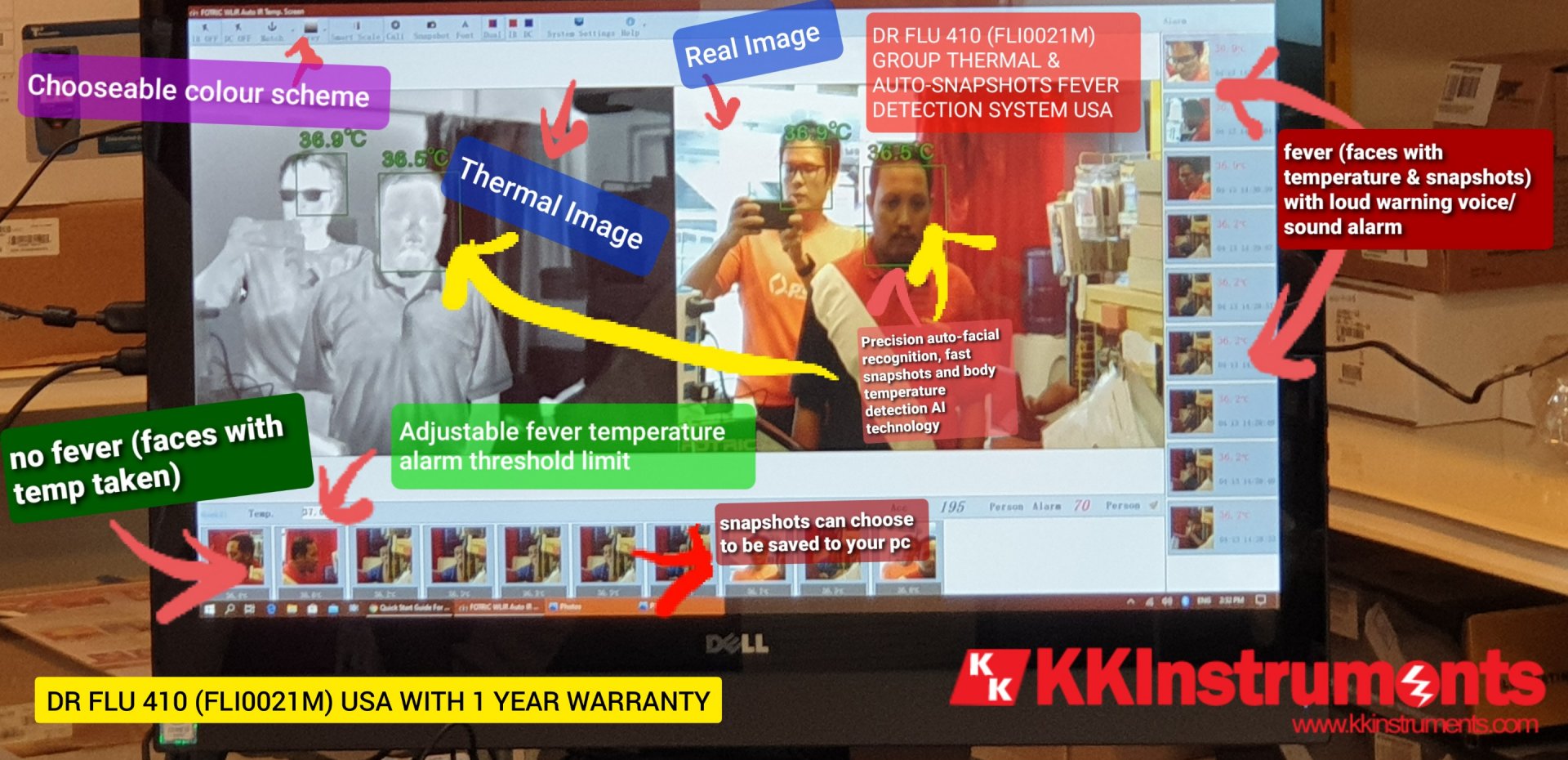

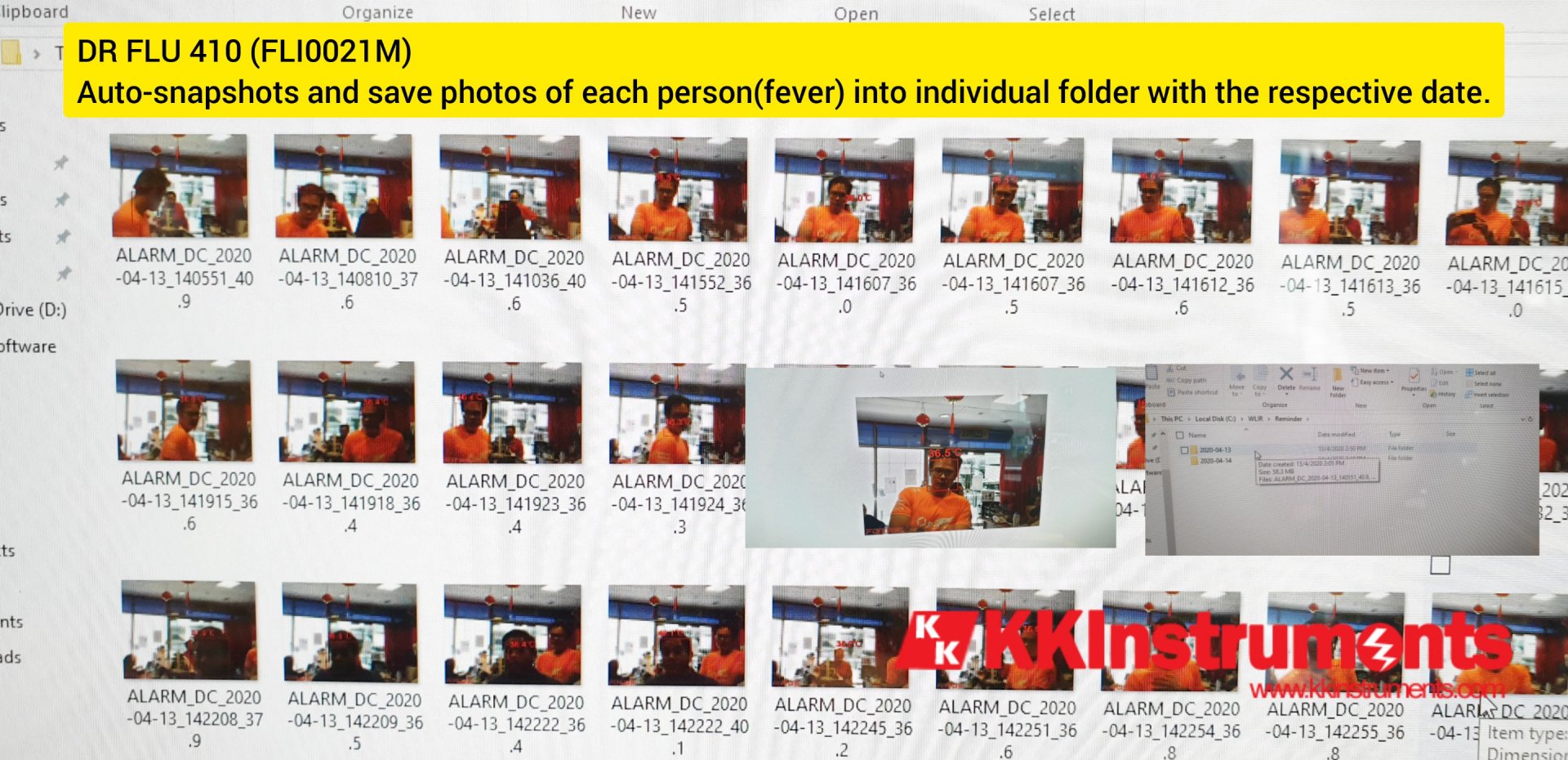

  • Captures the image of suspect temperature and displays it on screen
  • IR Resolution: 384 x 288 pixels
  • Thermal Sensitivity (NETD):<0.05˚C @ 30˚C
  • Field of View: 28˚H x 21˚V
  • Detector Type:
    • Poysillicon-FPA
    • Uncooled Microbolometer
    • 17µm
    • Spectral Range 8-14µm
  • Frame Rate: 50Hz
  • Temperature Range: 20˚C-60˚C (68˚F-140˚F)
  • Accuracy: ±0.2˚C
  • Temperature Stability: ±0.5˚C
  • AI Face Detection: Dual Light Detection (visible light and infrared thermal)
  • AI Body Temperature Algorithm: Calibrate alarm thresholds in real time based on ambient temperature
  • Statistic Function: Automatic statistics of screening number
  • Shooting Mode:
    • Automatic abnormal temperature snap shot
    • Manual shooting
  • Alarm Function: Both colour alarm and sound alarm
  • Color Pallet:
    • Black-White
    • Iron
    • Rainbow
  • Image Format: Standard JPEG with temperature data
  • Interface Connection: USB
  • Software: 0˚C-40˚C (32˚F-104˚F)
  • Operating Temperature: -20˚C-40˚C (32˚F-104˚F)
  • Storage Temperature: -20˚C-50˚C (-4˚F-122˚F)
  • Enclosure Rating: IP40
  • Charging System: DC 12V Charger
  • Weight: ±560g
  • Dimensions (LxHxW): 97mm x 145mm x 93.5mm
  • Tripod Mounting: UNC 1/4"-20
  • Warranty: 1 Year
  • Standard Configuration:
    • Infrared imager
    • Standard lens
    • DC adaptor
    • 3m USB
    • Calibration Certificate
    • Getting Started Manual (with warranty card)
