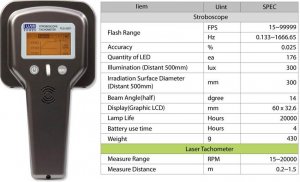

LUM002 PLS-200T HIGH TECHNOLOGY STROBOSCOPE (LED) AND TACHOMETER-COMPLETE SET



* High quality product with 2 years warranty.

LED VS XENON

- It can measure 10 times wider range with the much higher emission frequency at the FPM of 500,000 FPM, than that of 30,000FPM of Xenon Lamp
- It can use for a long time with lamp life over 10,000 hours
- It can measure area at the RPM of 15~250,000(used Double RPM Check) with the FPM of 15~500,000
- It is very bright because using white power LED through over-current control

Reliability of Measurement

- Realizing measurement accuracy below 0.0125% with fully digital method (15~120,000 FPM)
- Preventing measurement errors by variation at the multiples of integers (2,3,4,5... 21) and measuring fast
- Equipped with function deciding the direction of rotating bodies



LED VS XENON

- It can measure 10 times wider range with the much higher emission frequency at the FPM of 500,000 FPM, than that of 30,000FPM of Xenon Lamp
- It can use for a long time with lamp life over 10,000 hours
- It can measure area at the RPM of 15~250,000(used Double RPM Check) with the FPM of 15~500,000
- It is very bright because using white power LED through over-current control

Reliability of Measurement

- Realizing measurement accuracy below 0.0125% with fully digital method (15~120,000 FPM)
- Preventing measurement errors by variation at the multiples of integers (2,3,4,5... 21) and measuring fast
- Equipped with function deciding the direction of rotating bodies

Convenient and Fast Measurement

- Measuring RPM only with scrolling using a speed responsive type wheel scroll button
- Very convenient use by ergonomic design
- Convenient measurement with support for RPM auto sweep mode

Functions of Tachometer

- Possible Various Measurements with Built-in Laser Tachometer
- Monitoring with Computer and Saving Data (Free Software Provided)

High-Capacity Rechargeable Battery

- Up to 3 hour use with high-capacity hydrogen rechargeable battery (Ni-Mh)
- Fast charging of 2 hours by high-speed charging
- Can use the product while charging battery

Various Advanced Functions

- Long-term Consecutive Measurement Using Adapter
- Usable as an Installation Type Using Tripod
- Measuring Vibration and Turbulence
- Providing with Pulse Peak Brightness (25,000cd) and Constant Surface Illumination with White Lighting
- Input and Output of External Pulse (In/Output TTL Level with or without reversal)
- Usable for Pulse Lighting for Vision, High Speed Camera Lighting, Inspection of Printed Materials, etc.

Package includes:
1. Stroboscope
2. Reflexive Tape
3. 24V Adapter (2.5A, 100~240V, 50/60Hz)
4. User Manual
