Sew 162 CB

Category: Cable Tracers

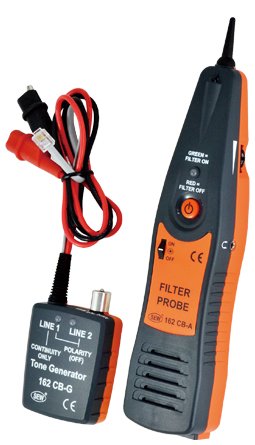

Filter Probe
● Works with any Tone Generator to identify wires.
● Volume control for increasing sensitivity and
   adjustable to suit work environment.
● 2 operation modes: Filter on / Filter off.
● The auto-off function (5 minutes) prevents battery
● Power supply is available in any 9V battery with a
   life of approximately 50 hours.
● A phone jack is designed for headset or handset.
● Flashlight function.
Tone Generator
● Tone Generator is a great tool for locating and
   identifying cable pairs or individual conductors.
● 162 CB-G doesn't only provide the function of a
   tone generator, but also serves as a continuity and
   polarity tester.
● A tone selector switch located inside the unit for
   selection of the fast tone or the slow tone.
● Two bi-colored LEDs for Line1 and Line 2 indication
   of the polarities of the telephone lines.
● The unit has alligator type terminals, a modular
   cable of 4 conductors with a strong connector.
● The tone and continuity functions are only applied
   to Line1. (Modular connector)
Filter Probe
Operation mode Filter on (avoid the interference of 50Hz/60Hz)
Filter off
Receiver distance < 50cm
Sensitivity control ˇ
Probe tip Fixed
Power source 9V battery × 1
Dimensions 250(L) × 39(W) × 38(D)mm
(battery included)
Approx. 180g
Tone Generator
Wave form Square Wave
Frequency 1kHz±15%
Over voltage
80V DC
Alternating tone Fast and Slow
Connection RJ11 connector, alligator clip x 2,
RJ45 connector (optional)
Power source 9V battery × 1
Dimensions 86(L)×63(W)×26(D)mm
(battery included)
Approx. 130g
Operating temp &
0˚~40˚C, 80% Max.
Storage temp &
-10˚~50˚C, 80% Max.
Safety standard  EN 61326-1   EN 55011
 EN 61000-4-2   EN 61000-4-3
