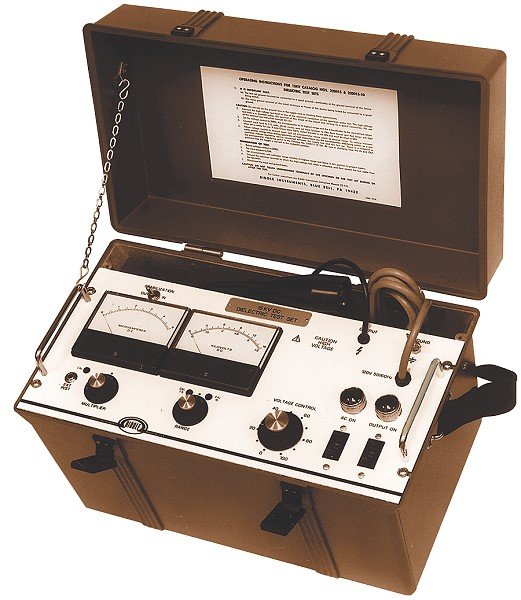

Megger 220005 and 220015 5 and 15 kV DC Dielectric Test Set

Category: Megger
  • Continuously variable test voltage
  • Rugged field construction
  • Compact and portable

    Dielectric test sets measure leakage current while applying a DC voltage at or above the insulation system’s operating level. This measurement aids in determining the insulation system’s ability to withstand over voltages such as lightning strikes and switching surges.

      220005 220015
    Voltage VDC 5 kV 15 kV
    Test Voltage Range 0 to 2.5 kV DC
    0 to 5 kV DC
    0 to 7.5 kV DC
    0 to 15 kV DC
    Max. Power System Voltage 2.5 kV AC
    (phase-to-phase)
    7.5 kV AC
    (phase-to-phase)
    Output Curve at 120 VAC input 5 mA continuous 5 mA for 12 min;
    2 mA continuous
    Dimensions 9.4 H x 13.5 W x 10 D in.
    24.9 H x 34.3 W x 25.4 D cm
    12 H x 20.5 W x 13 D in.
    30.5 H x 52 W x 33 D cm






    Included Accessories

    • (1) 4702 Ground Connection, 10 ft
    • (1) 220000 kV/MΩ test record graph paper (100-sheet pad)
    • (1) 17032 Power Cord
    • (1) AVTM22-5JB Instruction Manual
