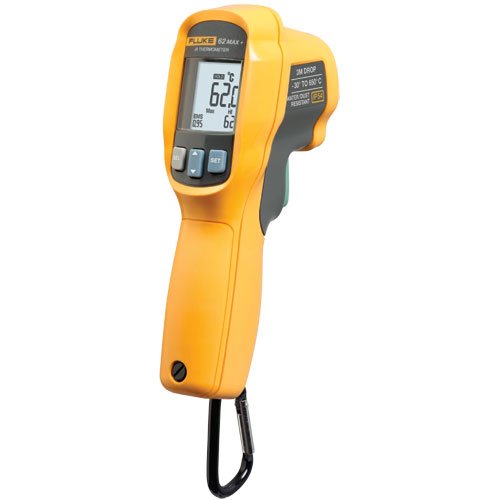

Fluke 62 Max+ Infrared Thermometer with Dual-point Laser Sighting 30°C to 650°C, 12:1 ratio, ±1% Accuracy

The Fluke 62 MAX+ Dual Point Infrared thermometers is good at many things; accuracy, distance to spot, adjustable emissivity, and high-low alarms. The Fluke 62 Max Plus is rugged, accurate, easy-to-use test tools are dust, water and drop resistant, making them ideal for the harsh conditions faced by technicians in electrical, service, HVAC, process, industrial and facilities maintenance applications.

The Fluke 62-Max+ is ideal for quick temperature scans of systems to look for anything from unusual hot spots that signal electrical and electro-mechanical malfunctions to undesirable air intake/output patterns in the building envelope. Because infrared measurement does not require making contact with the surface being measured, technicians can make the measurements from a distance, away from moving machinery or live electrical connections. The Fluke 62Max+ has a distance-to-spot ration of 12:1 and measures 30°C to 650°C with an accuracy ± 1.0% of the reading.

Ideal for use with/for:
Role Working Environment Applications
  • Utilities, manufacturing facilities
  • Mostly indoors
  • Hot/cold environments
  • May be wet or damp
  • May be on catwalks, ladders or cement flooring
  • Rotating motors and other machinery
  • Motor starter relay contacts and overloads
  • Bearings
  • Energy surveys
  • Boiler operations and steam systems
  • Performance verifications
  • Production process
  • Utilities, manufacturing facilities, office buildings
  • Mostly indoors
  • Temperate environment
  • Check temps of high-voltage equipment and transformers from a safe distance
  • Detect heating of fuses, wires, insulators, connectors, splices, switches
  • Overloaded motors due to possible harmonic currents
  • Utilities, manufacturing facilities, office buildings, some residential
  • Inside and outside
  • Hot and cold environments
  • May be wet or damp
  • Climbing ladders or catwalk either inside or to the roof
  • Check temp of furnace exteriors, stream traps, heat exchangers
  • Take suction line temps for superheat
  • Ambient temp readings
  • Outlet/inlet air
  • Refrigeration equipment, freezers, AC condenser temps to look for blockages
  • Chiller input/output
  • Energy audits
Fluke 62 Max+ Specifications
Temperature range -30° to 650ºC (–22° to 1202°F)
Accuracy ± 1.0% of the reading.
Distance to Spot size 12:1
